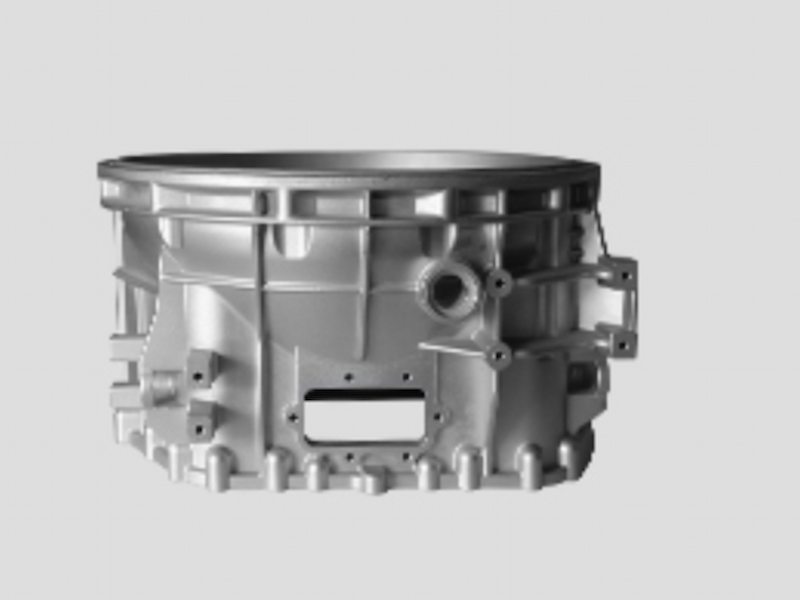

The Transmission Housing / Gearbox Housing / Transmission Enclosure is a critical die-cast component of the automotive powertrain system. Designed to house transmission assemblies—such as gears, bearings, and shafts—it provides structural support and positioning, serves as a reservoir for lubricating oil, and offers sealing and protection. Manufactured via aluminum alloy die-casting, it achieves lightweighting to reduce the vehicle's overall curb weight while delivering excellent rigidity and heat dissipation. It effectively shields internal transmission mechanisms from external contaminants and is widely used in transmission assemblies for both passenger and commercial vehicles, with support available for OEM custom manufacturing.
Item No :
IDMMP-0003Order(MOQ) :
1Payment :
50% T/T in advance, Balance paid again when finishing production and before shipmentProduct Origin :
XiamenColor :
RAL、PANTONE、GSB05···Custom colorsShipping Port :
Xiamen Port,ChinaLead Time :
20-30daysWeight :
As per product's size and thickness and materials.Transmission Housing / Gearbox Housing / Transmission Enclosure
Product Description: Aluminum Transmission Housings, Including Die-cast Gearbox Casings, Clutch Housings, and Front/Rear Transmission Housings; Die-cast Aluminum Housings for Drivetrain Systems.
Model: OEM/ODM
Base Materials: Magnesium-aluminum alloys; die-cast aluminum alloys (ADC12, A380, A356) and Al-Si series die-casting alloys. These materials offer high strength, excellent vibration damping, superior flowability during die-casting, lightweight properties, and excellent heat dissipation.

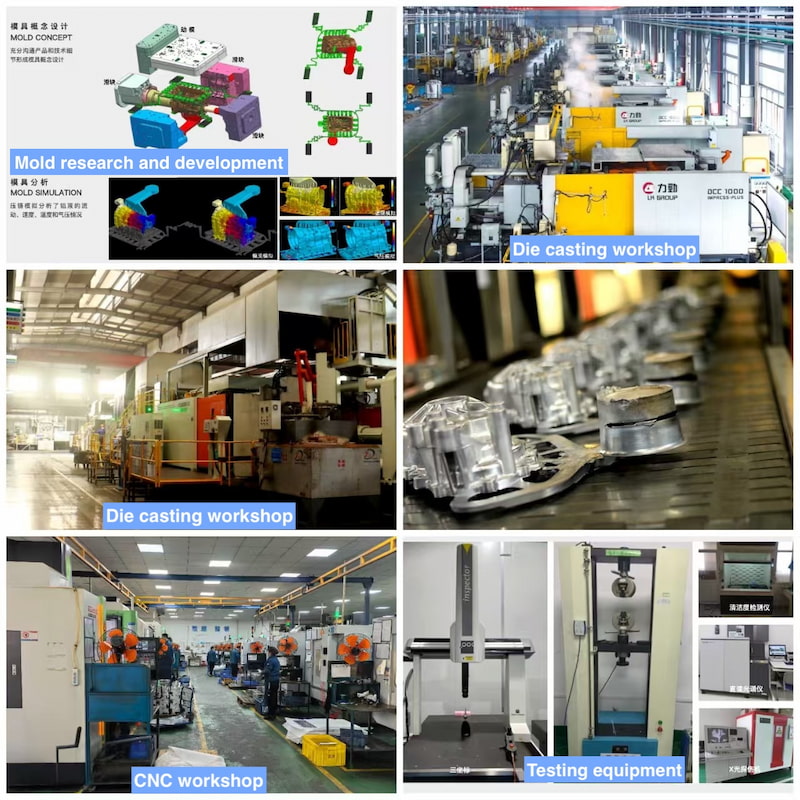

Manufacturing Process: High-pressure die-casting → Gate and overflow removal → Shot blasting → CNC machining (milling of mating surfaces, precision boring of bearing holes, bolt hole machining) → Deburring and high-pressure cleaning → Air-tightness (leak) testing → Hydraulic leak testing → Comprehensive visual inspection → Surface treatment → Finished product dimensional inspection.
Precision: Die-cast blank dimensional tolerance: ±0.5–1.0 mm; CNC machined sealing surfaces and mounting holes tolerance: ±0.02–0.05 mm
Surface Treatment:
1. Natural sandblasting (semi-finished blank; customers may apply their own coating)
2. Chromate passivation / Chromium-free passivation (basic rust protection)
3. Electrostatic powder coating (Colors: RAL, PANTONE, GSB05, etc./Custom colors; C3–C5 corrosion resistance rating)
4. Hard anodizing, conductive oxidation
5. Anti-corrosion dip coating, electrophoretic coating
Unit Price: Quoted based on drawings
Packaging:
1. Internal cushioning/protection: Full coverage of the cabinet interior with EPE foam; thickened EPE cushioning at vulnerable areas—such as corners, heat dissipation vents, and door frame seams—to prevent paint scratches, deformation, or damage caused by bumps and compression during transport.
2. Internal moisture and rust protection: Desiccant placed inside the cabinet to absorb condensation caused by temperature fluctuations in shipping containers, preventing the steel from rusting due to moisture.
3. Comprehensive Moisture-Proof Sealing: The entire unit is fully wrapped in PE moisture-proof and waterproof film to block the intrusion of seawater mist and humidity.
4. Carton & Corner Reinforcement: Encased in a thickened, seven-layer export-grade corrugated carton; solid wood corner protectors are installed at the four corners to provide rigid protection against impacts and crushing during loading and unloading.
5. Bulk Shipment: Packed on ISPM 15-compliant solid wood pallets; units are neatly stacked on heat-treated ISPM 15 pallets and secured with stretch wrap. This meets global customs quarantine standards for wood products and facilitates forklift handling, container stacking, and long-distance ocean transport.
6. Extra-Large Multi-Unit Assemblies: Encased in IPPC-compliant plywood crates. For these large, multi-unit assemblies, we prioritize the use of sealed, fumigation-free IPPC plywood crates. These offer superior structural rigidity and sealing, providing enhanced shock and moisture resistance for long-distance ocean shipping, while ensuring smooth customs clearance without quarantine-related delays.
7.Logistics: Ocean freight, air freight, international express (DHL, FedEx, UPS, TNT), rail transport (primarily China-Europe Railway Express), and road transport (short-haul cross-border trade with neighboring countries).
The die-cast aluminum housing for residential energy storage battery packs serves as the core structural enclosure, manufactured via high-pressure aluminum alloy die-casting. It houses energy storage cells, the BMS (Battery Management System), and cooling lines. Key features include high strength, lightweight design, excellent thermal conductivity and heat dissipation, impact resistance, and a high IP protection rating, ensuring the safety of the battery modules. Suitable for residential wall-mounted systems and small-scale commercial/industrial energy storage equipment, the housing supports custom development to meet the requirements of diverse indoor and outdoor application scenarios.
